FPV Racing Drone — Virtual Prototype

Ever since I made my 2-inch drone, I wanted more. Talking about an upgraded version and showing you the virtual prototype of the drone! 2020-06-22

Preface

During the last year of high school in the IB program (aka PEI), students need to do a very complex project called the Personnal Project. It is divided into 4 main sections: Research, Planification, Action and Reflexion. For my personnal project, which I started a few months ago, I decided to build a very fast quadcopter, often called a Racing Drone. I had already built a drone before starting this project, which you can check out by clicking here. However, it was 2.5 times smaller and about 5 times less powerful than the one I will build for my personnal project, which will spin 5" propellers. This will be an awesome opportunity to learn a bunch about how drones work, but most importantly to work on my problem-solving skills.

The Prototype

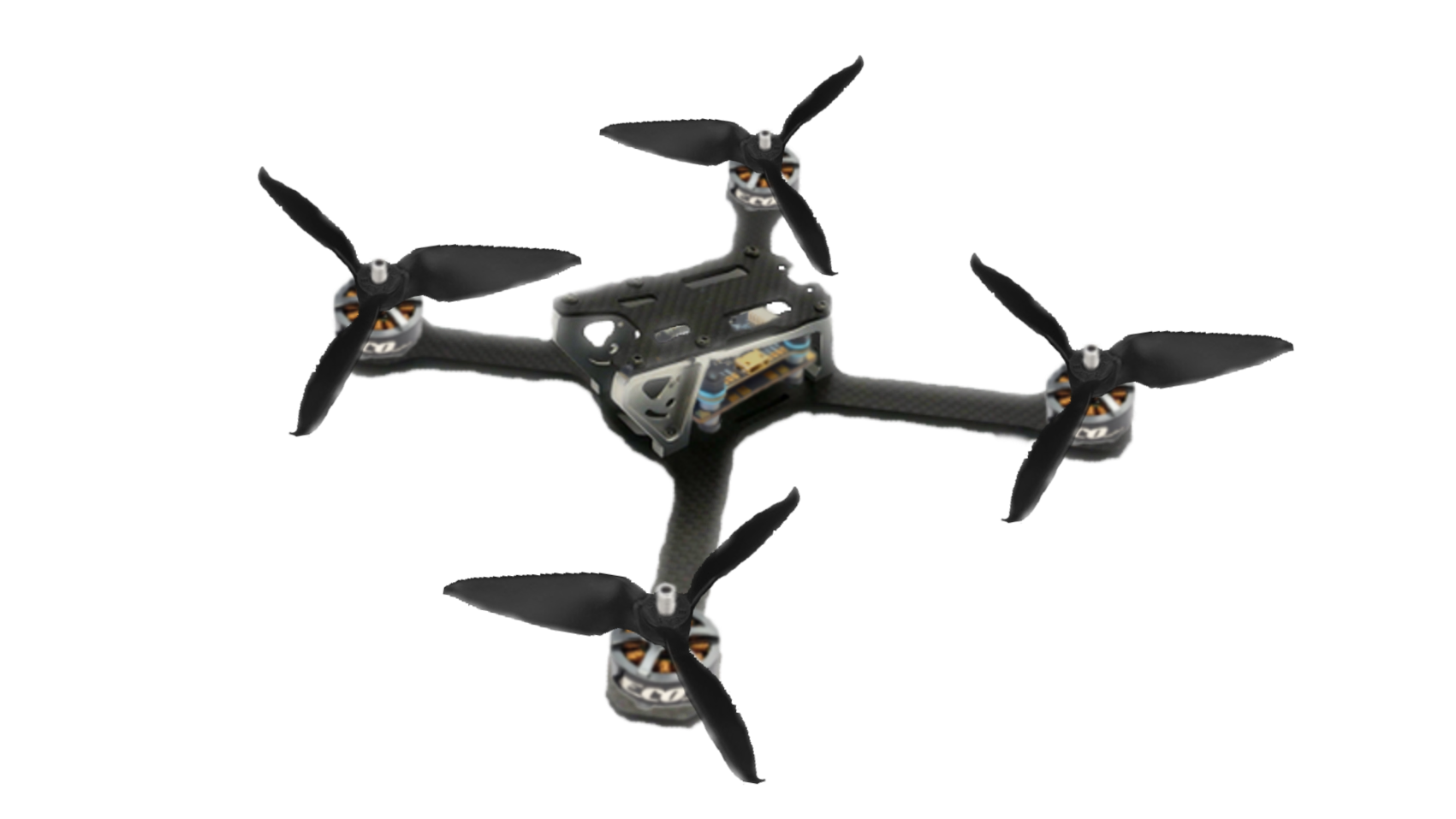

May 26th, I had the idea to try to make a virtual prototype of the drone in an image editing software. Since I had already found all the necessary sources, I had a good idea of the pieces I would use for the drone. And so I started editing using Paint 3D, but I quickly gave up because of the lack of functionnality of the software like the incapacity of working with images that have a trasparent backgorund. I ended up starting from scratch on an online editor called Pixlr, and it was way easier from then on. After 3 hours, I was done! Here's the prototype:

drone virtual prototype

The Parts Used

Here's a list of all the parts I will use to make this drone (keep in mind that I will not be using a camera nor a VTX, to keep the build as simple as possible):

And here's a list of the potential parts I would use if I were to upgrade this drone one day:
