FPV Racing Drone — Final Version The final version of my 5-inch drone! Showing you the final build and some flight footage. I'm really happy with the result! `2021-11-26` Preface About one and a half years ago, I started building my FPV racing drone. I believe it has reached a matured state, and I do not plan on making any major changes to it in the future. For this reason, I thought I would make a post to write about the final state of the project! The Final Version Above is a picture of the final version of my FPV drone, and below is a list of all the parts, tools and supplies that were used to build it. Note that replacement parts and custom 3D-printed parts have not been included. (4x) Emax Eco Series 2207 1700KV 3-6S (2x 10 pairs) Dalprop Cyclone T5045C Pro 3-blade ImpulseRC Apex Carbon Fiber Frame Clone ImpulseRC Apex Clone Spare Arm 10x M3 Aluminum Alloy Standoffs - 35mm 10x M3 Aluminum Alloy Standoffs - 20mm M3 Cap Head Screw Assortment (2x 10pcs) 260mm Eachine Battery Strap 5pcs URUAV PADSTAR Battery Pad (2x 50pcs) RJXHOBBY 3x150mm Nylon Cable Ties Mamba F4 (F405 MK2 + F40 40A) Fli14+14CH Mini Receiver (4x) CNHL Black Series 1300mAh 22.2V 6S 100C LiPo Foxeer Razer Mini 1/3 CMOS Camera Eachine TX805 5.8GHz RP-SMA Female Realacc RHCP mini Stubby RP-SMA Male Flysky i6X 10CH Transmitter Transmitter Toggle Switch - 2 Short Transmitter Toggle Switch - 3 Short Eachine EV100 FPV Goggles Eachine EV100 Soft Head Foam Eachine EV100 Micro AV Recorder Caddx Orca 4K HD Camera iMAX B6 80W 6A Balance Charger Sequre SQ-D60 Type B Soldering Iron XT60 Parallel Charging Board 2pcs 18AWG XT60 to Banana Adapter 20cm 20AWG XT60 Adapter for IMAX B6 3pcs 3mm Solder Wick 31x21cm Silicone Desk Mat VIFLY ShortSaver Smoke Stopper V1 Final Words Building this drone has been an amazing learning opportunity for me. When I initially started this project as my IB Personal Project, I simply wanted to build a drone that would be durable and that would have a high top speed. However, over the months, I kept upgrading it: I added an FPV system, improved the 3D-printed parts, bought a better frame for it... It also forced me to buy tools such as a higher quality soldering iron and an Action Camera, which have proven very useful in other projects. I currently live in Ottawa, and so finding locations to fly drones isn't easy. With that said, all that matters is that it still amazes anyone I show it to!
© 2025 Emilien Breton `legacy/FPV-Racing-Drone/Final-Version/index.md`

FPV Racing Drone — Final Version

The final version of my 5-inch drone! Showing you the final build and some flight footage. I'm really happy with the result! 2021-11-26

Preface

About one and a half years ago, I started building my FPV racing drone. I believe it has reached a matured state, and I do not plan on making any major changes to it in the future. For this reason, I thought I would make a post to write about the final state of the project!

The Final Version

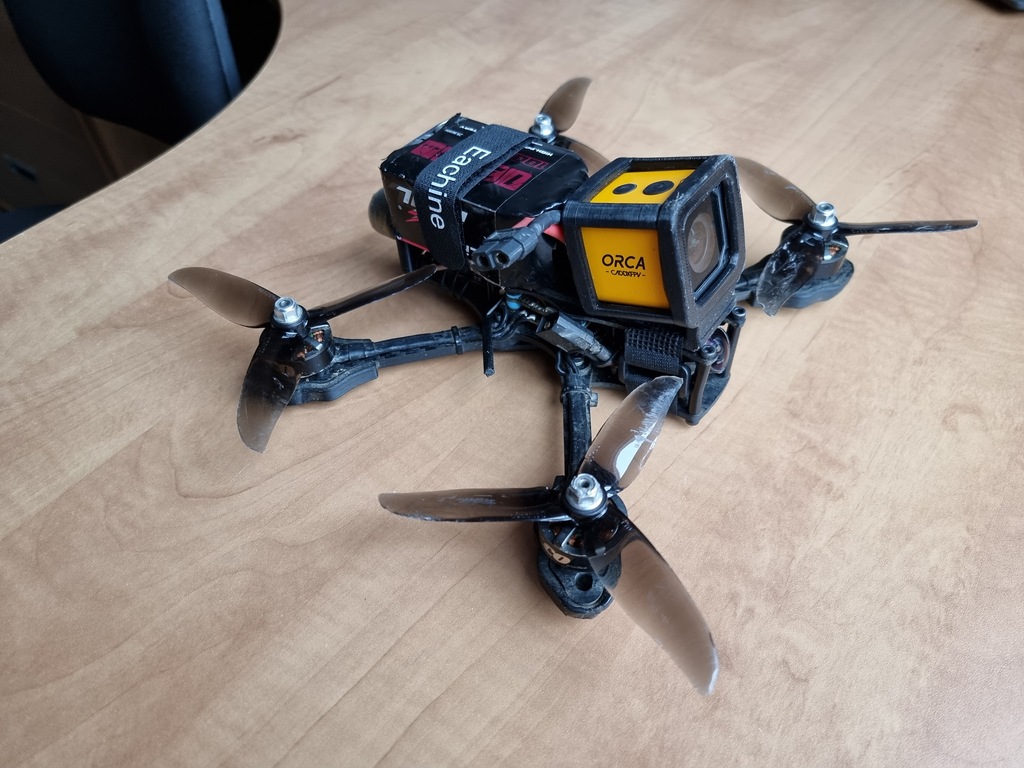

image of the final version of the drone

Above is a picture of the final version of my FPV drone, and below is a list of all the parts, tools and supplies that were used to build it. Note that replacement parts and custom 3D-printed parts have not been included.

Final Words

Building this drone has been an amazing learning opportunity for me. When I initially started this project as my IB Personal Project, I simply wanted to build a drone that would be durable and that would have a high top speed. However, over the months, I kept upgrading it: I added an FPV system, improved the 3D-printed parts, bought a better frame for it... It also forced me to buy tools such as a higher quality soldering iron and an Action Camera, which have proven very useful in other projects.

I currently live in Ottawa, and so finding locations to fly drones isn't easy. With that said, all that matters is that it still amazes anyone I show it to!
