Conceptual Note-Taking
VS Code Note-Taking — Writing about the way I switched to VS Code to take my conceptual notes 2022-03-22
This post is outdated
Since writing this post, I have switched to using Neovim for note-taking. This post was preserved nonetheless.
Preface
A few months ago, I started taking notes conceptually using Notion. Even though choosing conceptual note-taking was definitely the right way to go, I felt like Notion was holding me back somewhat. It did offer a lot of features, but it lacked the customization I was after.
Since I already had a lot of experience using VS Code, I decided to look around to see if any extensions were available to make the note-taking process easier. Let's put it this way:
I'm not the first person to try to use VS Code to take notes conceptually.
My Current Setup
After a few days of experimenting with different extensions, I decided to settle on the following setup, a mix of extensions, settings and key bindings.
- Chart.js Markdown Preview
- Chart.js Preview
- Code Spell Checker
- File Utils
- GitHub Markdown Preview
- Markdown Checkboxes
- Markdown Emoji
- Markdown Footnotes
- Markdown Memo
- Markdown Preview GitHub Styling
- Markdown Preview Mermaid Support
- Markdown yaml Preamble
- md-graph
- Markdown PDF
settings.json
//
//
// --------------------
// VIM BINDINGS
// --------------------
"editor.lineNumbers": "relative",
"vim.normalModeKeyBindingsNonRecursive": [
{
"before": ["g", "d"],
"commands": ["editor.action.openLink", "editor.action.revealDefinition"]
}
],
"vim.visualModeKeyBindingsNonRecursive": [
// Bind p in visual mode to paste without overriding the current register
// -- VS Code Vim extension
{
"before": ["p"],
"after": ["p", "g", "v", "y"]
}
],
//
//
// --------------------
// NOTE-TAKING
// --------------------
"md-graph.autoStart": false,
"MarkdownPaste.silence": true,
"MarkdownPaste.rules": [
{
"regex": "^(?:https?://)?(?:(?:(?:www\\.?)?youtube\\.com(?:/(?:(?:watch\\?.*?v=([^&\\s]+).*)|))?))",
"options": "g",
"replace": "[](https://www.youtube.com/watch?v=$1)"
},
{
"regex": "^(https?://.*)",
"options": "ig",
"replace": "<$1>"
}
],
"md-graph.graph.defaultMode": "FOCUS",
"md-graph.graph.focusNeighborDepth": 2,
"md-graph.graph.fadeDepth": 1,
"md-graph.showColumn": "active",
"workbench.editor.enablePreview": false,
"memo.links.rules": [
{
"rule": "",
"folder": "$CURRENT_FILE_DIRECTORY"
}
],
"markdown.styles": [
// "https://use.fontawesome.com/releases/v5.7.1/css/all.css", // mermaid
// https://www.dropboxforum.com/t5/Dropbox-files-folders/public-links-to-raw-files/td-p/110391
// .github-markdown-body, .github-markdown-content { background-color: #000000; }
// .github-markdown-body code { font-family: 'Fira Code'; }
"https://dl.dropbox.com/s/4g49nwbn2w0pxoj/markdown.css?dl=0"
],
"markdown.preview.linkify": false,
"markdown.preview.openMarkdownLinks": "inEditor",
"markdown-pdf.styles": [
// https://latex.vercel.app/
// https://github.com/yzane/vscode-markdown-pdf/issues/21
// https://www.mathjax.org/cdn-shutting-down/
// http://docs.mathjax.org/en/v3.2-latest/web/configuration.html
// https://docs.mathjax.org/en/latest/web/components/index.html#web-components
// https://stackoverflow.com/questions/1664049/can-i-force-a-page-break-in-html-printing
// https://stackoverflow.com/questions/22601053/pagebreak-in-markdown-while-creating-pdf
// https://stackoverflow.com/questions/14051715/markdown-native-text-alignment
// https://stackoverflow.com/questions/21316313/how-can-i-indent-all-text-in-a-paragraph-except-the-first-line
// https://gist.github.com/jonikarppinen/47dc8c1d7ab7e911f4c9
"https://latex.vercel.app/style.css"
],
"markdown-pdf.margin.left": "0",
"markdown-pdf.margin.right": "0",
"markdown-pdf.margin.top": "0",
"markdown-pdf.margin.bottom": "0",
"markdown-pdf.includeDefaultStyles": false,
"markdown-pdf.headerTemplate": " ",
"markdown-pdf.footerTemplate": " ",
//
//
// --------------------
// FORMATTERS LINTERS
// --------------------
"cSpell.allowCompoundWords": true,
"cSpell.useGitignore": false,
"cSpell.logLevel": "Information",
"cSpell.userWords": [
// ...
],
"cSpell.ignoreRegExpList": [
"/\\\\[\\{\\}a-z]+/gi", // latex commands including { and }
"/\\b[A-Z]{3,5}s?\\b/g" // acronyms including possible s
],
keybindings.json
// navigation
{
"key": "alt+u",
"command": "workbench.action.closeActiveEditor",
"when": "editorTextFocus || editorIsOpen"
},
{
"key": "alt+o",
"command": "workbench.action.nextEditorInGroup",
"when": "editorTextFocus || editorIsOpen"
},
{
"key": "alt+y",
"command": "workbench.action.previousEditor",
"when": "editorTextFocus || editorIsOpen"
},
{
"key": "shift+alt+u",
"command": "fileutils.removeFile",
"when": "editorTextFocus || editorIsOpen"
},
{
"key": "alt+i",
"command": "workbench.action.quickOpen",
"when": "editorTextFocus || editorIsOpen"
},
{
"key": "shift+alt+y",
"command": "workbench.action.moveEditorLeftInGroup",
"when": "editorTextFocus || editorIsOpen"
},
{
"key": "shift+alt+o",
"command": "workbench.action.moveEditorRightInGroup",
"when": "editorTextFocus || editorIsOpen"
},
{
"key": "shift+alt+i",
"command": "workbench.action.reopenClosedEditor",
"when": "editorTextFocus || editorIsOpen"
},
{
"key": "alt+`",
"command": "-workbench.action.closeActiveEditor",
"when": "editorTextFocus || editorIsOpen"
},
{
"key": "alt+`",
"command": "workbench.action.terminal.toggleTerminal",
"when": "terminal.active"
},
{
"key": "alt+shift+`",
"command": "workbench.action.terminal.new",
"when": "terminalProcessSupported || terminalWebExtensionContributedProfile"
},
// remap markdown paste to Ctrl+V
{
"key": "ctrl+v",
"command": "telesoho.MarkdownPaste",
"when": "editorTextFocus && resourceLangId == 'markdown'"
},
{
"key": "ctrl+alt+v",
"command": "-telesoho.MarkdownPaste",
"when": "editorTextFocus && resourceLangId == 'markdown'"
},
{
"key": "ctrl+shift+v",
"command": "editor.action.clipboardPasteAction",
"when": "editorTextFocus && resourceLangId == 'markdown'"
}
The Result
All of the above extensions and settings work together to make note-taking more efficient and more powerful. For instance, I can paste an image or a link straight from my clipboard and it will be inserted into the markdown document automatically. I can also use the g key to quickly navigate through files, with gd to open a note from its link.

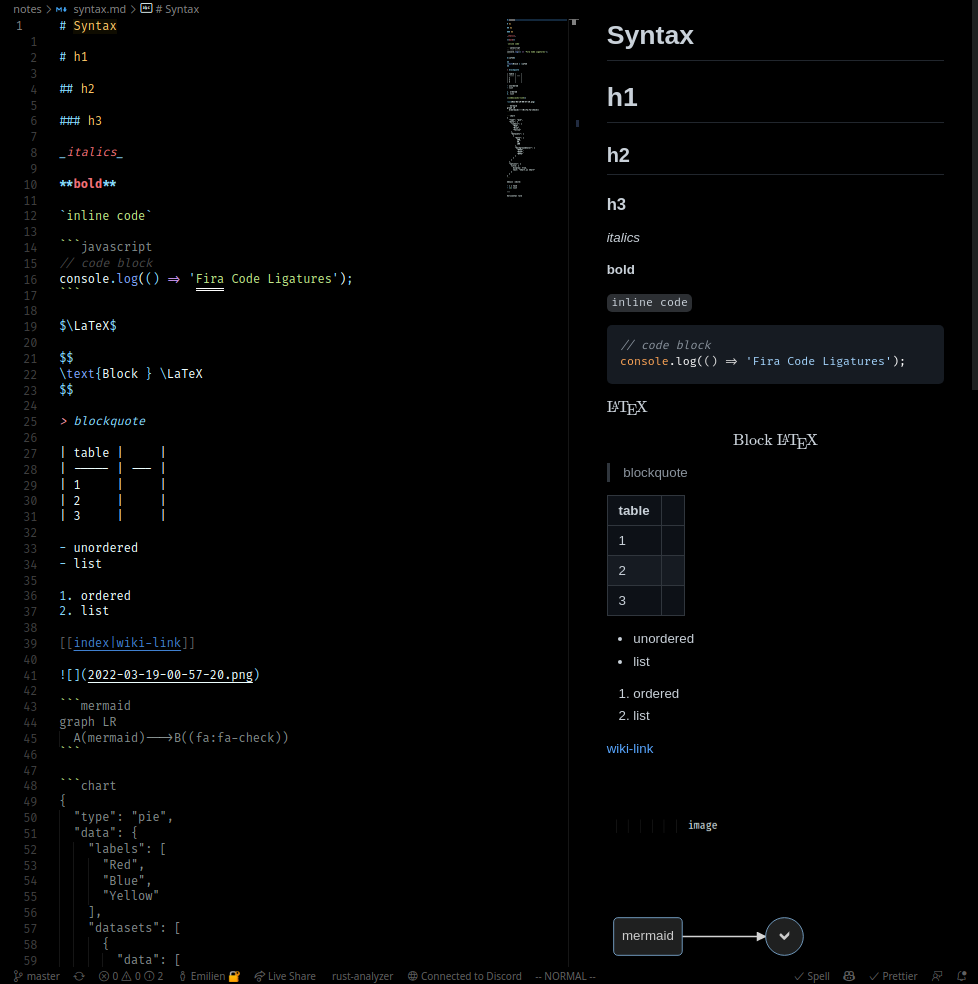

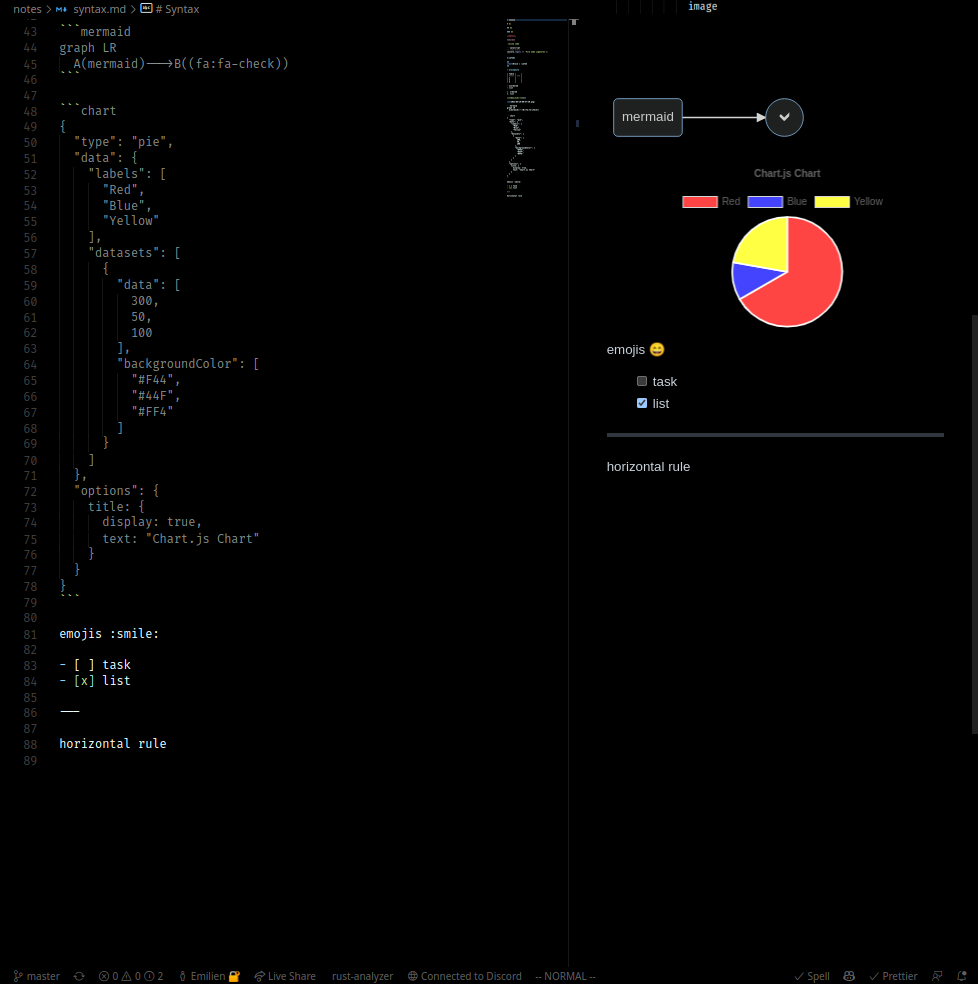

The markdown preview on VS Code is also extended to support full LaTeX, mermaid, and Chart.JS. Below are some screenshots of it.
 |
 |
And, of course, a tree view is generated in real time through the md-graph extension. In the screenshot below, each node is a note and each edge is a link between different notes. Clicking on a note in the tree view will open it in the editor, which is a good way to quickly navigate through notes. If this screenshot doesn't manage to convert you to a conceptual note-taker, I don't know what will.
